Compression Gas Spring
key word:
Download
Products Parameter
Compression Gas Spring
Products Details:
Shuangyuan produce high quality gas spring and exported to 60 countries for nearly 20 years.
Warranty : 1 years
Salt spray test: passing at least 96 hours salt spray test and even 168 hours.
Material: carbon steel and stainless steel SUS304 and SUS316
Working tempreture: -30 degree C and + 85 degreee C
For special request like - 40 degreee C,we can also meet your request.
Rohs: Rohs compliant,pass SGS Rohs test
Certificate: passing ISO9001:2015 and ISO/TS:16949 certificate
Application:
Bus luggage door, car tailgte and hood, furniture, treadmill, lift table etc.
Products Specification:
Rod diameter and cylinder diameter: 4/12,6/15,8/18,10/22
Typical products :

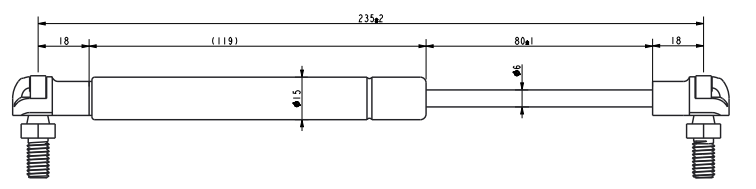

6/15 series:

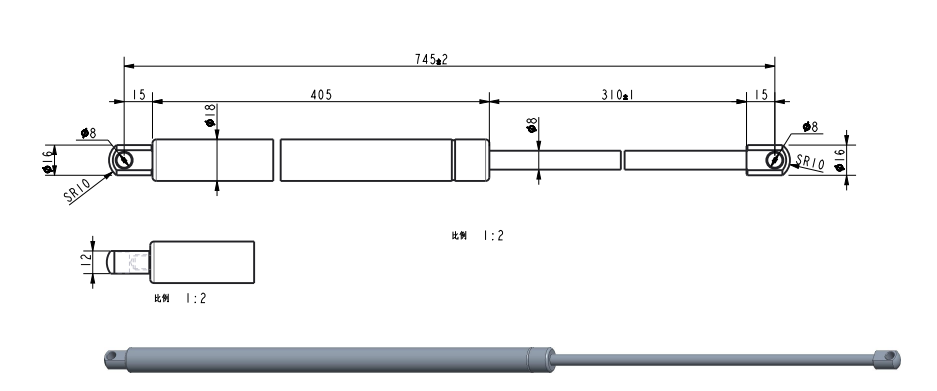

8/18 seriese:

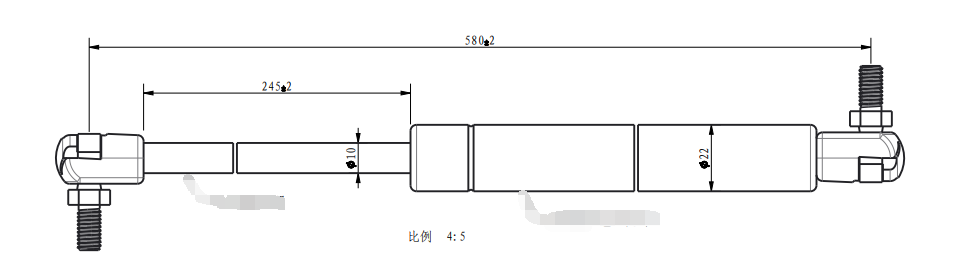

10/22 series:
We also produce small gas spring like 4/12 rod and big gas spring like 14/28 rod.
We can also customize as per your request.
